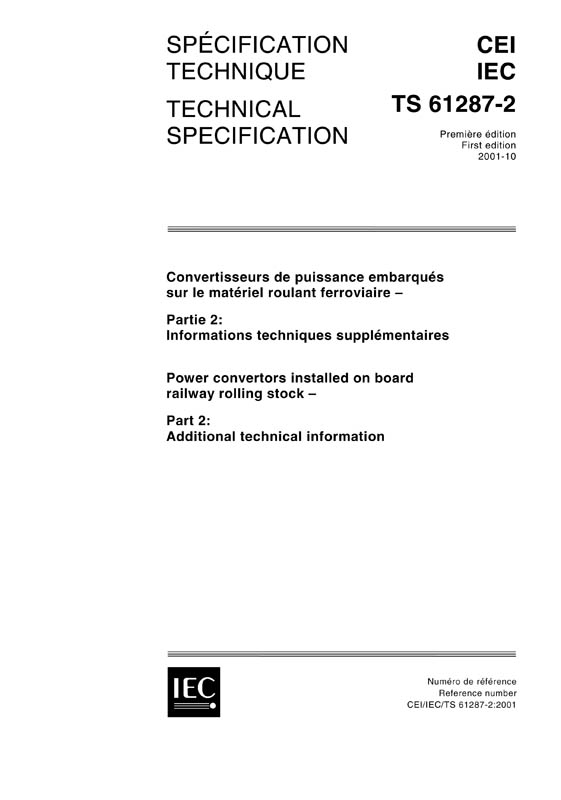

Cover IEC TS 61287-2:2001
größer

IEC TS 61287-2:2001

Power convertors installed on board railway rolling stock - Part 2: Additional technical information

Circulation Date: 2001-10
Edition: 1.0
Language: EN-FR - bilingual english/french
Seitenzahl: 187 VDE Artno.: 200489

Content

Shows basic circuit configurations, control methods, operation modes and behaviour of electric power convertors for rolling stock such as external commutated rectifiers, self-commutated rectifiers, choppers and inverters. Describes typical charts and methods, but does not claim to be exhaustive. The main purpose of this specification is to calculate power quantities such as input/output voltage, input/output current, frequency spectrum of voltage/current, voltage/current ripple and voltage/current harmonics.
