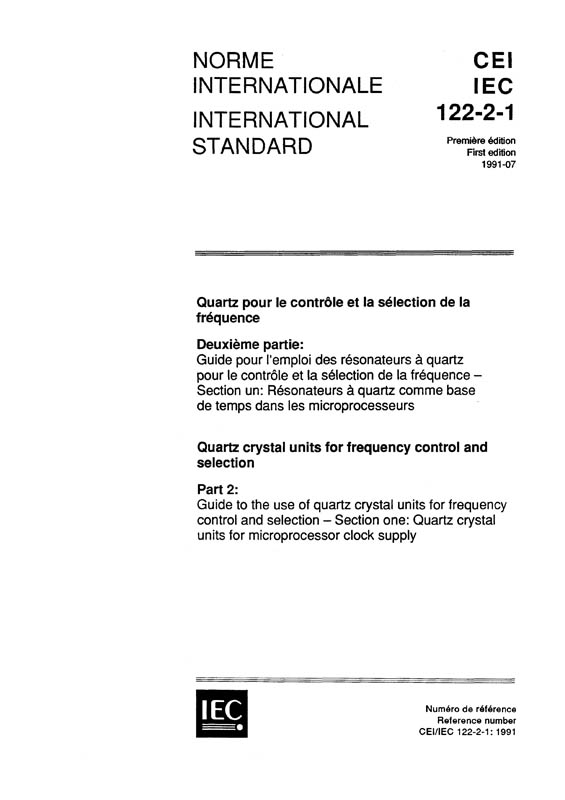

IEC 60122-2-1:1991
Quartz crystal units for frequency control and selection - Part 2: Guide to the use of quartz crystal units for frequency control and selection - Section One: Quartz crystal units for microprocessor clock supply
Circulation Date:
1991-07
Edition:
1.0
Language: EN-FR - bilingual english/french
Seitenzahl: 40 VDE Artno.: 204381
This guide addresses some of the special problems encountered in specifying and using quartz crystal units for frequency control with the integrated circuit oscillators commonly incorporated on microprocessor silicon devices. The special problems include the (usually unspecified) phase delay and parasitic parameters of the active circuits which often result in unpredictable behaviour of the oscillator circuit.
