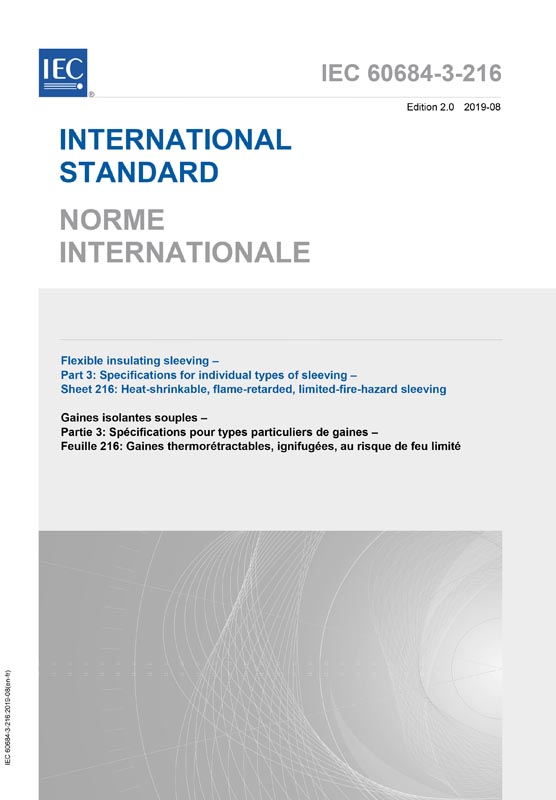

IEC 60684-3-216:2019

Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet 216: Heat-shrinkable, flame- retarded, limited-fire-hazard sleeving

Circulation Date: 2019-08
Edition: 2.0
Language: EN-FR - bilingual english/french
Seitenzahl: 32 VDE Artno.: 247894

Content

IEC 60684-3-216:2019 is available as IEC 60684-3-216:2019 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.

IEC 60684-3-216: 2019 gives the requirements for four types of heat-shrinkable, flame-retarded, limited-fire-hazard sleeving with a thermal endurance rating of 105 °C as shown below.
Class A: thin wall shrink ratio 2:1 internal diameter up to 102,0 mm
Class B: medium wall shrink ratio 2:1 internal diameter up to 60,0 mm
Class C: thick wall shrink ratio 2:1 internal diameter up to 51,0 mm
Class D: medium wall shrink ratio 3:1 internal diameter up to 40,0 mm
These sleevings are normally supplied in the following colours: black, red, green, blue, white, yellow and green/yellow. Sizes or colours other than those listed in this document are available as custom items. These items are considered to comply with this document if they comply with the property requirements listed in Tables 5, 6, 7 and 8, excluding dimensions and mass. Materials which conform to this specification meet established levels of performance. However, the selection of a material by a user for a specific application will be based on the actual requirements necessary for adequate performance in that application and not based on this specification alone. This second edition cancels and replaces the first edition published in 2001, Amendment 1:2005 and Amendment 2:2013. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
1. the temperature at which the sleeving is shrunk in a forced-air circulation oven for (5 ± 1) min has been increased from (150 ± 5) °C to (200 ± 5) °C.
Keywords: flexible insulating sleeving for electrical purposes
