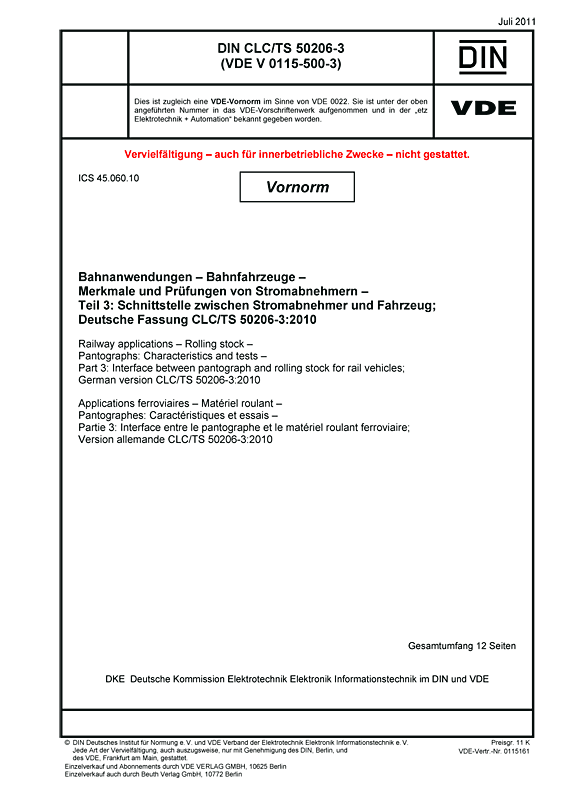

Cover DIN CLC/TS 50206-3 VDE V 0115-500-3:2011-07
larger

DIN CLC/TS 50206-3 VDE V 0115-500-3:2011-07

Railway applications – Rolling stock – Pantographs: Characteristics and tests

Part 3: Interface between pantograph and rolling stock for rail vehicles;

German version CLC/TS 50206-3:2010
Class/Status: Standard, valid
Released: 2011-07
VDE Art. No.: 0115161

Contents (only German)

This technical specification defines mechanical, pneumatic, and electrical interfaces between one single arm pantograph and the roof of mainline rail vehicles. In contrast to EN 50206-1, it is assumed that the insulators are part of the pantograph scope of supply. The air supply of the pantograph to the vehicle roof is in the responsibility of the car manufacturer.
