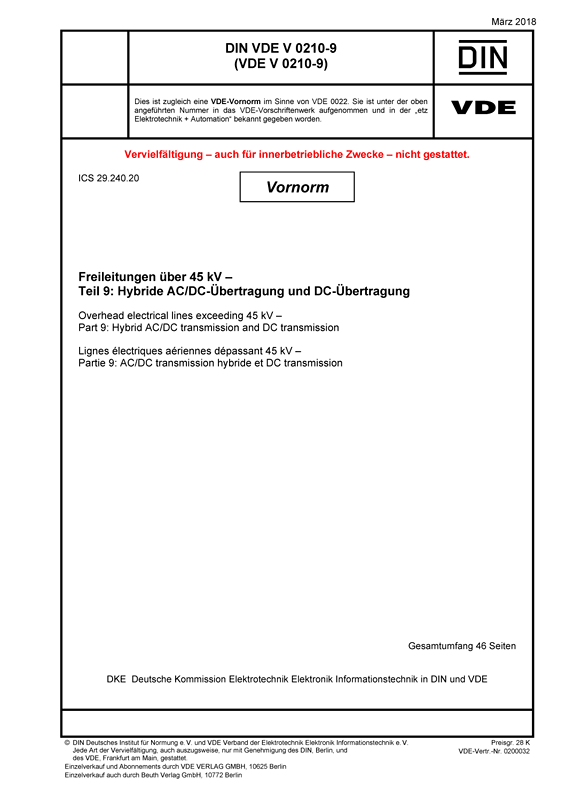

Cover DIN VDE V 0210-9 VDE V 0210-9:2018-03
larger

DIN VDE V 0210-9 VDE V 0210-9:2018-03

* German Language Version *

Overhead electrical lines exceeding 45 kV

Part 9: Hybrid AC/DC transmission and DC transmission

Class/Status: Standard, valid
Released: 2018-03
VDE Art. No.: 0200032

Contents

This prestandard applies for the planning and installation of high-voltage overhead electrical lines with hybrid AC/DC systems, i. e. one or more AC circuits are in parallel with one or more DC circuits in close vicinity.
It also applies for the planning and installation of DC high-voltage overhead electrical lines. In this prestandard AC systems with a nominal voltage exceeding 45 kV and DC systems with a rated voltage exceeding 45 kV are regarded as high-voltage overhead electrical lines.
The configuration of the DC system (e. g. monopoles, bipoles) must be taken into account especially for the rating of the neutral conductor.
