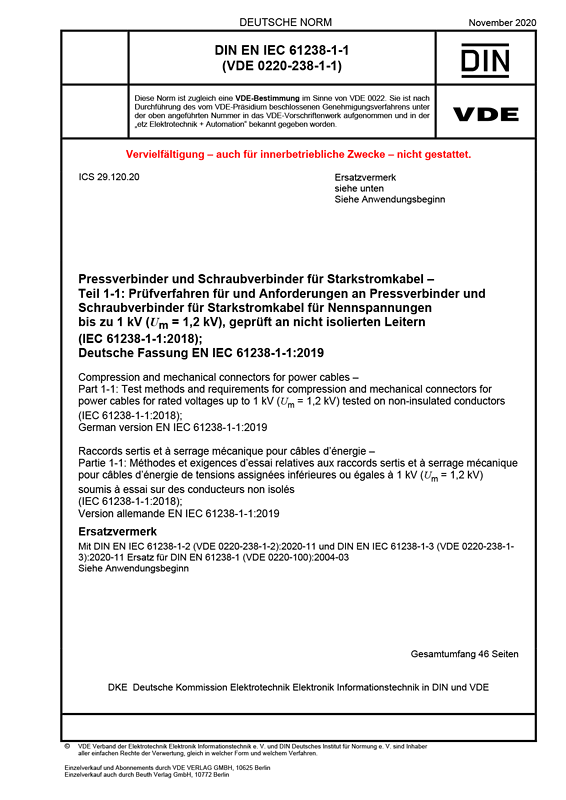

Cover DIN EN IEC 61238-1-1 VDE 0220-238-1-1:2020-11
larger

DIN EN IEC 61238-1-1 VDE 0220-238-1-1:2020-11

* German Language Version *

Compression and mechanical connectors for power cables

Part 1-1: Test methods and requirements for compression and mechanical connectors for power cables for rated voltages up to 1 kV (Um = 1,2 kV) tested on non-insulated conductors

(IEC 61238-1-1:2018); German version EN IEC 61238-1-1:2019
Class/Status: Standard, valid
Released: 2020-11
VDE Art. No.: 0200049

This part of IEC 61238-1 applies to compression and mechanical connectors for power cables 116 for rated voltages up to 1 kV (Um = 1,2 kV), e.g. buried cables or cables installed in buildings, having conductors complying with IEC 60228 having nominal cross-sectional areas between 2,5 mm2 and 1200 mm2 for copper and between 16 mm2 and 1200 mm2 for aluminium; and a maximum continuous conductor temperature not exceeding 90 °C.
