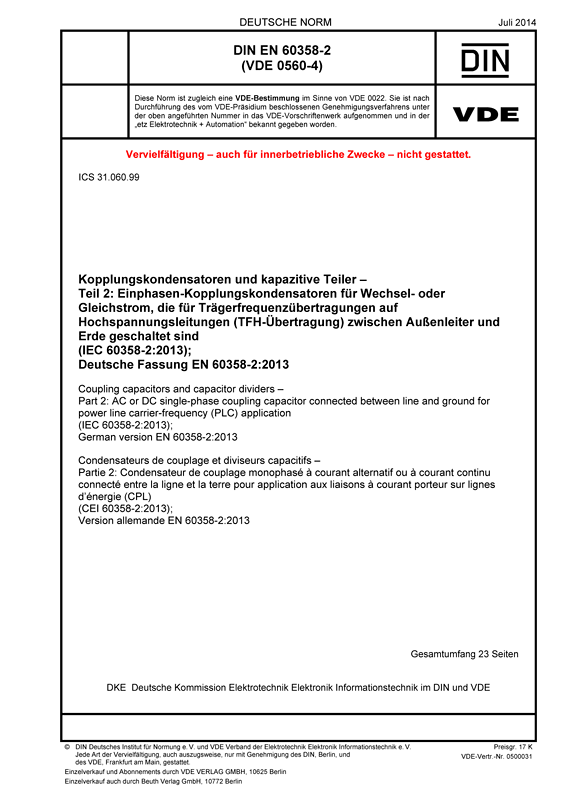

DIN EN 60358-2 VDE 0560-4:2014-07

Coupling capacitors and capacitor dividers

Part 2: AC or DC single-phase coupling capacitor connected between line and ground for power line carrier-frequency (PLC) application

(IEC 60358-2:2013); German version EN 60358-2:2013
Class/Status: Standard, valid
Released: 2014-07
VDE Art. No.: 0500031

Contents (only German)

IEC 60358 2 applies to AC or DC single-phase coupling capacitor, with rated voltage > 1 000 V, connected between line to ground with low voltage terminal either permanently earthed or connected to a device for power line carrier-frequency (PLC) application at frequencies from 30 kHz to 500 kHz or similar applications; DC or AC at power frequencies from 15 Hz to 60 Hz.
