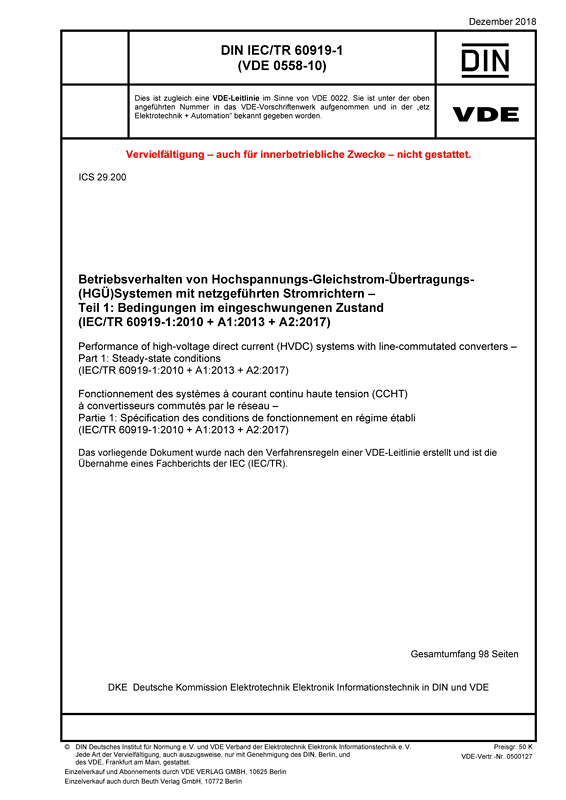

DIN IEC/TR 60919-1 VDE 0558-10:2018-12

* German Language Version *

Performance of high-voltage direct current (HVDC) systems with line-commutated converters

Part 1: Steady-state conditions

(IEC/TR 60919-1:2010 + A1:2013 + A2:2017)
Class/Status: Standard, valid
Released: 2018-12
VDE Art. No.: 0500127

This part of the IEC 60919 provides general guidance on the steady-state performance requirements of high-voltage direct current (HVDC) systems. It concerns the steady-state performance of two-terminal HVDC systems utilizing 12-pulse converter units comprised of three-phase bridge (double- way) connections (see Figure 1), but it does not cover multi-terminal HVDC transmission systems. Both terminals are assumed to use thyristor valves as the main semiconductor valves and to have power flow capability in both directions. Diode valves are not considered in this report.
