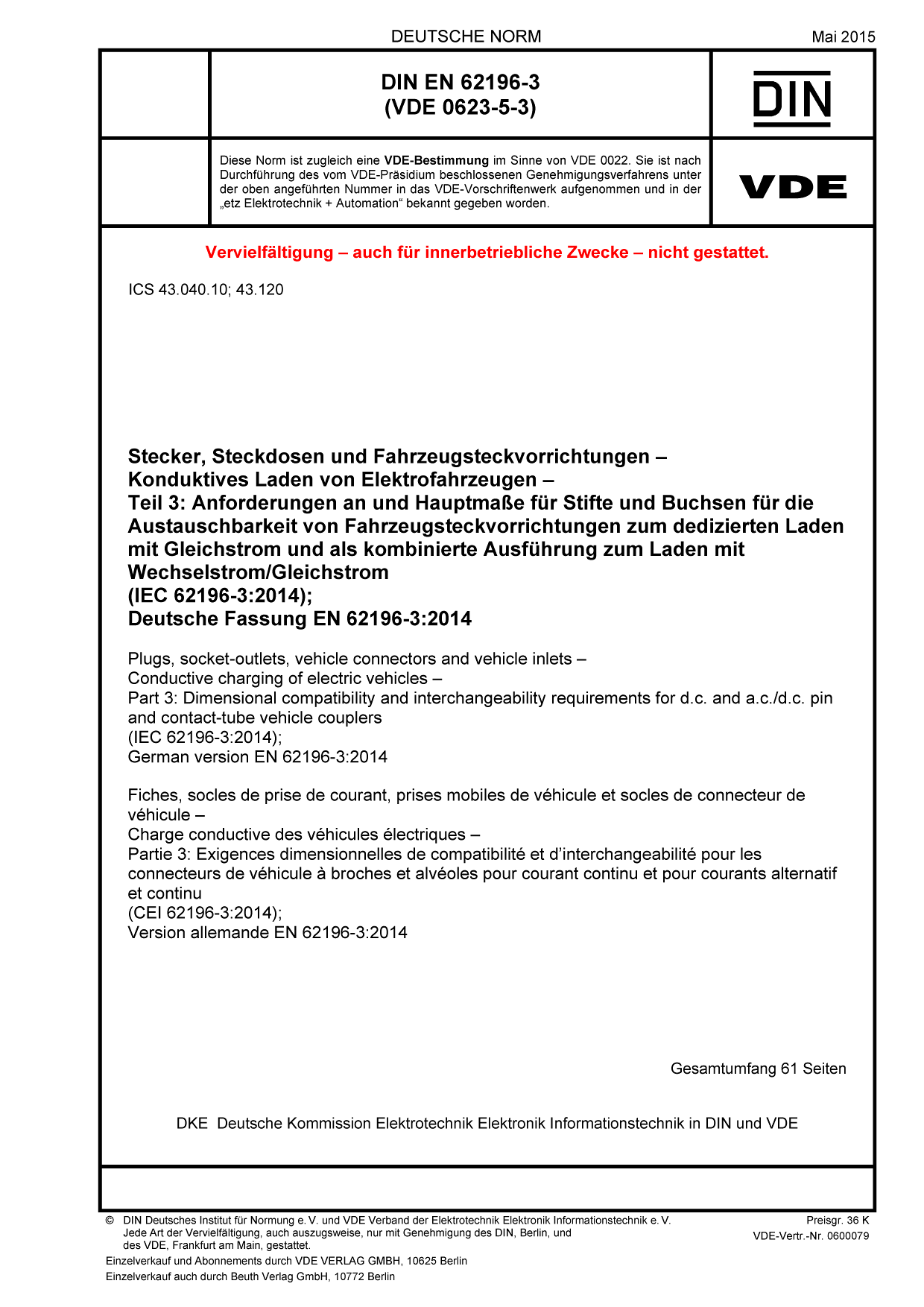

Cover DIN EN 62196-3 VDE 0623-5-3:2015-05
larger

DIN EN 62196-3 VDE 0623-5-3:2015-05

* German Language Version *

Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive charging of electric vehicles

Part 3: Dimensional compatibility and interchangeability requirements for d.c. and a.c./d.c. pin and contact-tube vehicle couplers

(IEC 62196-3:2014); German version EN 62196-3:2014
Class/Status: Standard, valid
Released: 2015-05
VDE Art. No.: 0600079

Contents

This part of IEC 62196 is applicable to vehicle couplers with pins and contact-tubes of standardized configuration, herein also referred to as “accessories”, intended for use in electric vehicle conductive charging systems which incorporate control means, with rated operating voltage up to 1 500 V d.c. and rated current up to 250 A, and 1 000 V a.c. and rated current up to 250 A.

This Document is related to the following Topics (in bold):

43 ROAD VEHICLES ENGINEERING
43.040 Road vehicle systems
43.060 Internal combustion engines for road vehicles
43.100 Passenger cars. Caravans and light trailers
43.120 Electric road vehicles

Click on the appropriate Subject Area Link to display all valid Documents or use the Standards Search.
