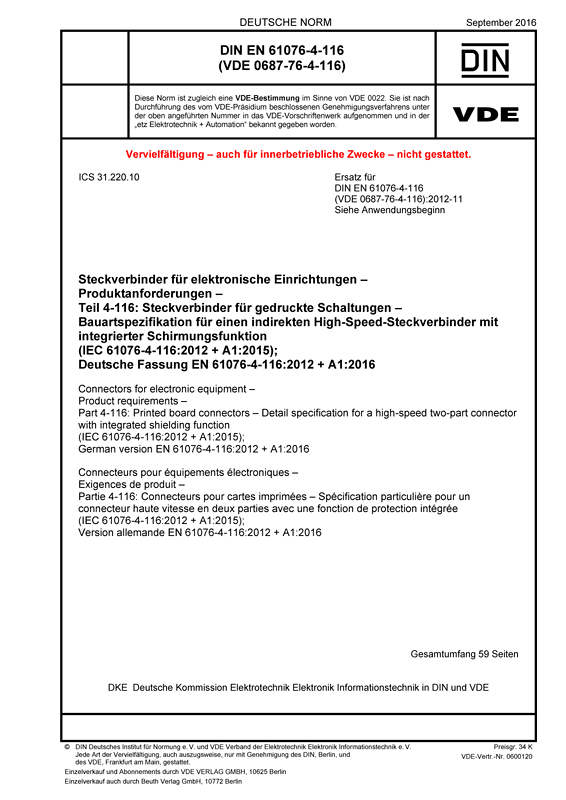

DIN EN 61076-4-116 VDE 0687-76-4-116:2016-09

Connectors for electronic equipment – Product requirements

Part 4-116: Printed board connectors – Detail specification for a high-speed two-part connector with integrated shielding function

(IEC 61076-4-116:2012 + A1:2015); German version EN 61076-4-116:2012 + A1:2016
Class/Status: Standard, valid
Released: 2016-09
VDE Art. No.: 0600120

Contents (only German)

Dynamic stress tests on connector as defined in sub-clause 8.5 - Arrangement for dynamic stress tests are carried out according to IEC 60512, tests 6c and 6d. The device under test consists of the connector assembled to a printed board. The printed board under test usually contains the connector but no additional components.

Replacement for:
DIN EN 61076-4-116 VDE 0687-76-4-116:2012-11
