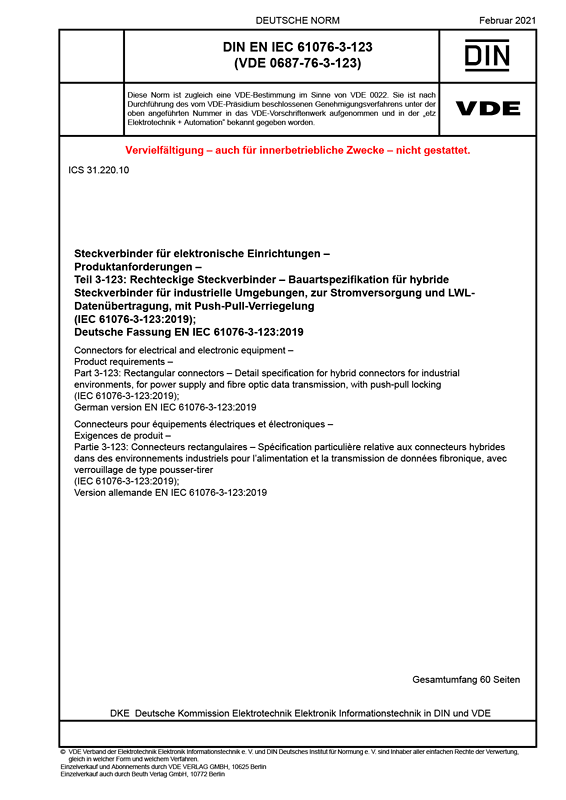

DIN EN IEC 61076-3-123 VDE 0687-76-3-123:2021-02

Connectors for electrical and electronic equipment – Product requirements

Part 3-123: Rectangular connectors – Detail specification for hybrid connectors for industrial environments, for power supply and fibre optic data transmission, with push-pull locking

(IEC 61076-3-123:2019); German version EN IEC 61076-3-123:2019
Class/Status: Standard, valid
Released: 2021-02
VDE Art. No.: 0600295

This International Standard covers hybrid rectangular connectors with a 3 poles 16 A electric portion (2P+PE or 2P+FE) for power supply and one duplex fibre optic connector type LC portion for data transmission. These connectors consist of fixed and free connectors, either rewirable or non-rewirable for both portions) and use the rectangular push-pull housing described in IEC 61076-3-117 with IP65/IP67 degree of protection, for harsh applications. The mating dimensions of such housings allowfulfilling the performance class Category I according to IEC 61753-1-3 in regards to the fibre optic portion of the connector.
