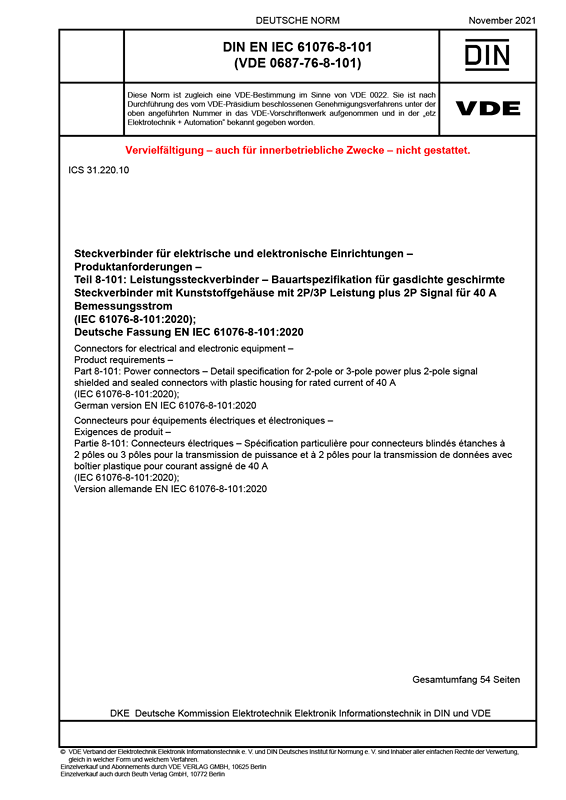

DIN EN IEC 61076-8-101 VDE 0687-76-8-101:2021-11

Connectors for electrical and electronic equipment – Product requirements

Part 8-101: Power connectors – Detail specification for 2-pole or 3-pole power plus 2-pole signal shielded and sealed connectors with plastic housing for rated current of 40 A

(IEC 61076-8-101:2020); German version EN IEC 61076-8-101:2020
Class/Status: Standard, valid
Released: 2021-11
VDE Art. No.: 0600343

This part of IEC 61076-8 describes 2P or 3P power plus 2P signal shielded and sealed connectors with plastic housing (hereinafter referred to as a connector) for electromechanical equipment, including overall dimensions, interface dimensions, technical characteristics, performance requirements and test methods.
