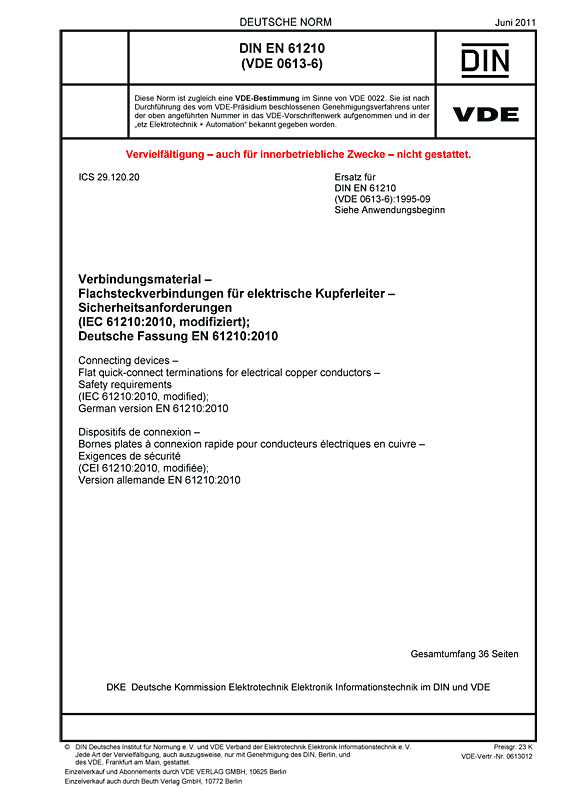

Cover DIN EN 61210 VDE 0613-6:2011-06
larger

DIN EN 61210 VDE 0613-6:2011-06

* German Language Version *

Connecting devices

Flat quick-connect terminations for electrical copper conductors – Safety requirements

(IEC 61210:2010, modified); German version EN 61210:2010
Class/Status: Standard, valid
Released: 2011-06
VDE Art. No.: 0613012

Contents

This Standard applies to non-insulated flat quick-connect terminations consisting of a male tab of size 2,8 mm, 4,8 mm, 6,3 mm or 9,5 mm with hole or dimple detents and a mating female connector. They are used as either an incorporated or an integrated part of an equipment or of a component, or as a separate entity. Uniform requirements for dimensions, performance characteristics and test program are established. Connected electrical copper conductors shall be flexible or rigid stranded, having a cross-sectional area up to and including 6 mm2 or rigid solid having a cross-sectional area up to and including 2,5 mm2. This standard shall not be used for connecting aluminum conductors. The rated voltage shall not exceed 1 000 V a.c. with a frequency up to and including 1 000 Hz, and 1 500 V d.c., and having the temperature limits applicable to materials used within this standard.
