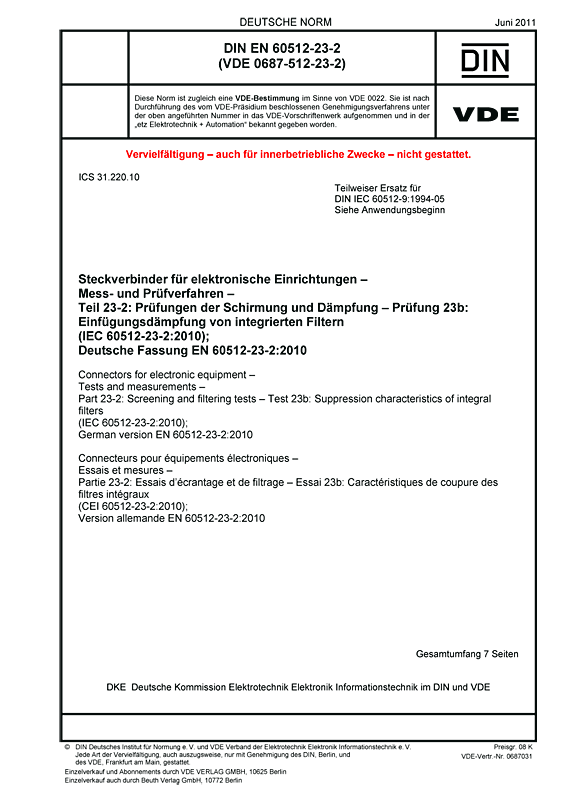

DIN EN 60512-23-2 VDE 0687-512-23-2:2011-06

Connectors for electronic equipment – Tests and measurements

Part 23-2: Screening and filtering tests – Test 23b: Suppression characteristics of integral filters

(IEC 60512-23-2:2010); German version EN 60512-23-2:2010
Class/Status: Standard, valid
Released: 2011-06
VDE Art. No.: 0687031

Contents (only German)

This part of IEC 60512, when required by the detail specification, is used for testing connectors within the scope of technical committee 48. It may also be used for similar devices when specified in a detail specification. The object of this standard is to detail a standard method to measure suppression characteristics (insertion loss) introduced by single and multiple circuit radio-frequency filters which are an integral part of a connector.

This Document is related to the following Topics (in bold):

31	ELECTRONICS
31.020	Electronic components in general
31.040	Resistors
31.060	Capacitors
31.080	Semiconductor devices
31.120	Electronic display devices
31.140	Piezoelectric devices
31.160	Electric filters
31.180	Printed circuits and boards
31.190	Electronic component assemblies
31.200	Integrated circuits. Microelectronics
31.220	Electromechanical components for electronic and telecommunications equipment
31.240	Mechanical structures for electronic equipment
31.260	Optoelectronics. Laser equipment

Click on the appropriate Subject Area Link to display all valid Documents or use the Standards Search.
