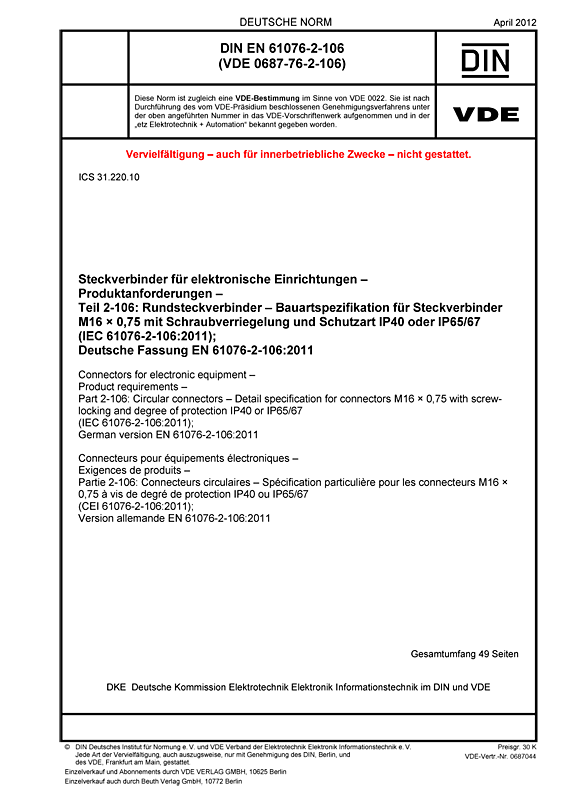

DIN EN 61076-2-106 VDE 0687-76-2-106:2012-04

Connectors for electronic equipment – Product requirements

Part 2-106: Circular connectors – Detail specification for connectors M16 × 0,75 with screw-locking and degree of protection IP40 or IP65/67

(IEC 61076-2-106:2011); German version EN 61076-2-106:2011
Class/Status: Standard, valid
Released: 2012-04
VDE Art. No.: 0687044

Contents (only German)

This International Standard describes circular connectors with IP40 or IP65/67 protection degree, typically used for industrial process measurement and control. These connectors consist of fixed and free connectors, either rewireable or non-rewireable, with M16 ? 0,75 screw-locking. Male connectors have round contacts Æ 1,5 mm or Æ 1,0 mm.
