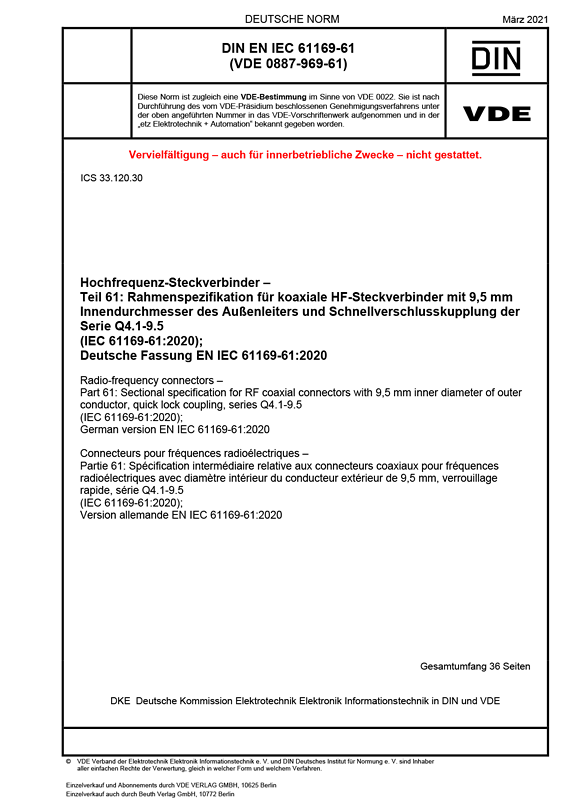

Cover DIN EN IEC 61169-61 VDE 0887-969-61:2021-03
larger

DIN EN IEC 61169-61 VDE 0887-969-61:2021-03

* German Language Version *

Radio-frequency connectors

Part 61: Sectional specification for RF coaxial connectors with 9,5 mm inner diameter of outer conductor, quick lock coupling, series Q4.1-9.5

(IEC 61169-61:2020); German version EN IEC 61169-61:2020
Class/Status: Standard, valid
Released: 2021-03
VDE Art. No.: 0800713

This part of IEC 61169, which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for coaxial connectors with 9.5 mm inner diameter of outer conductor and quick lock coupling mechanism, characteristic impedance 50 Ohms, its operating frequency is up to 8.5 GHz. Series Q4.1-9.5 connector with socket centre contact is compatible with threaded 4.1-9.5 series (specified in IEC 60169-11) connector with pin centre contact. This type connectors are start applied in telecommunication systems due to it’s special features are suitable for outdoor harsh requirements application such as quick and reliability coupling, compatible with threaded connector and entire waterproof.
