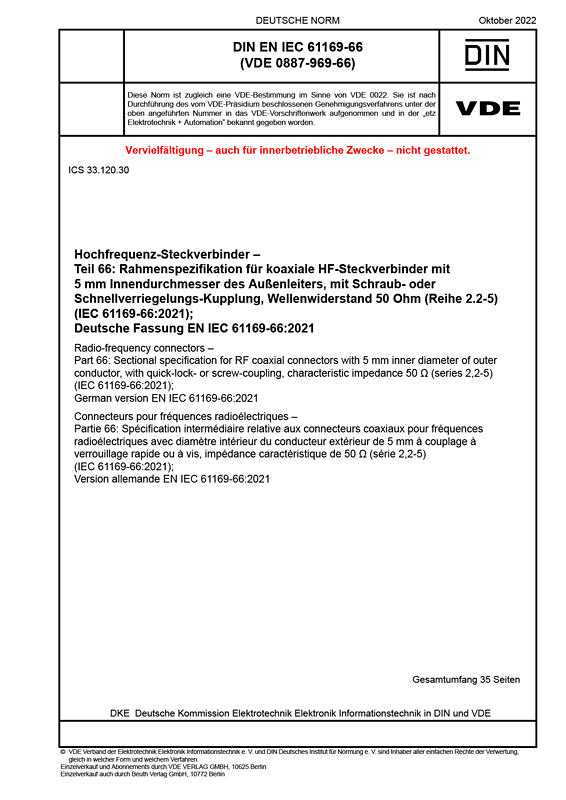

DIN EN IEC 61169-66 VDE 0887-969-66:2022-10

Radio-frequency connectors

Part 66: Sectional specification for RF coaxial connectors with 5 mm inner diameter of outer conductor, with quick-lock- or screw-coupling, characteristic impedance 50 O (series 2,2-5)

(IEC 61169-66:2021); German version EN IEC 61169-66:2021
Class/Status: Standard, valid
Released: 2022-10
VDE Art. No.: 0800827

This part of IEC 61169, which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for series 2,2-5 RF coaxial connectors with quick-lock- or screw coupling, characteristic impedance 50 O, for operating frequencies up to 6 GHz. Typical use is in wireless telecommunication systems.
