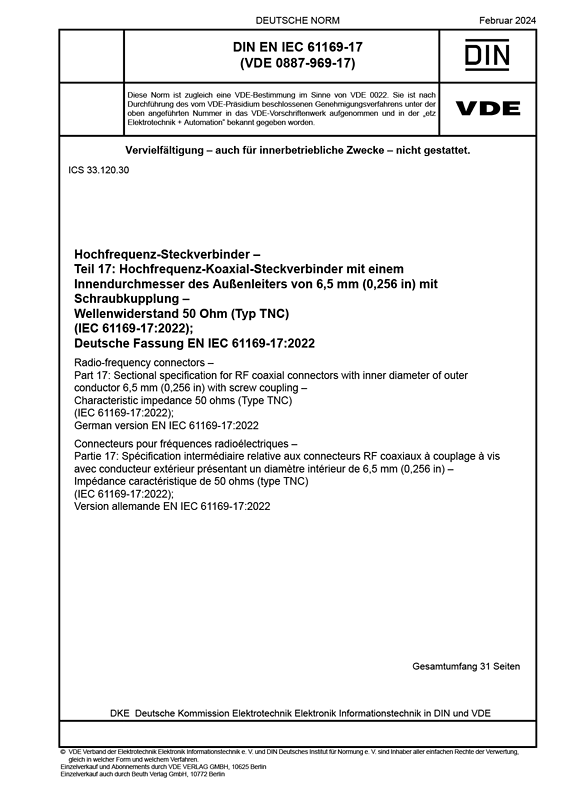

DIN EN IEC 61169-17 VDE 0887-969-17:2024-02

Connectors of this type are used in modern high-frequency applications. They are used for antenna and distribution networks and, as connecting elements, form an important interface for the associated active components.
This part of IEC 61169, which is a frame specification, provides information and rules for the preparation of design specifications for TNC series RF coaxial connectors with threaded coupling with a characteristic impedance of 50 O. This document prescribes the mating face dimensions for high performance Class 2 connectors, the dimensions of standard Class 0 test connectors, the measurement information, and the tests selected from IEC 61169-1 that apply to all design specifications for TNC series RF connectors. This document provides recommended performance characteristics to be considered when preparing a detail specification, and includes test plans and test requirements for evaluation levels M and H. TNC Series connectors used with all types of RF cables and microstrips in microwave transmission systems. Operating frequency is up to 11 GHz.
NOTE Metric dimensions are original dimensions. All undimensioned pictorial configurations are for reference only.
Thus, the standard provides investment security for manufacturers and users and gives test laboratories and manufacturers defined specifications for testing.
