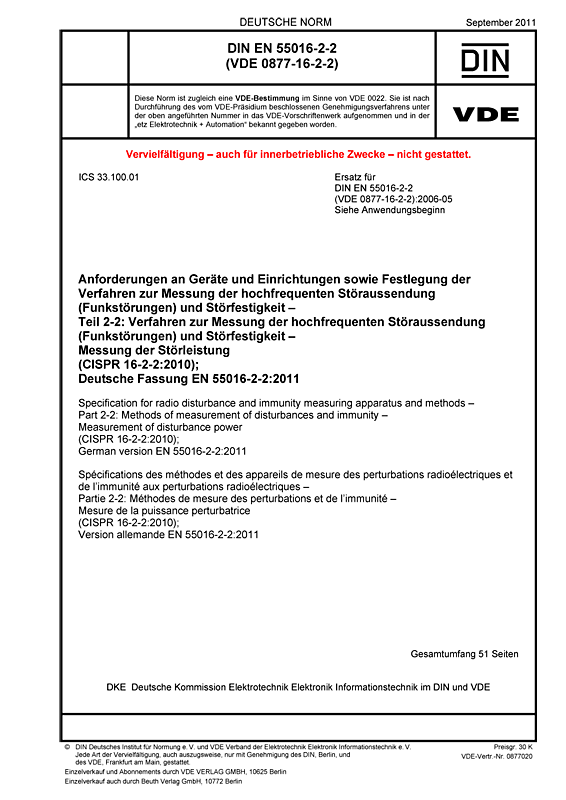

Cover DIN EN 55016-2-2 VDE 0877-16-2-2:2011-09
larger

DIN EN 55016-2-2 VDE 0877-16-2-2:2011-09

* German Language Version *

Specification for radio disturbance and immunity measuring apparatus and methods

Part 2-2: Methods of measurement of disturbances and immunity – Measurement of disturbance power

(CISPR 16-2-2:2010); German version EN 55016-2-2:2011
Class/Status: Standard, valid
Released: 2011-09
VDE Art. No.: 0877020

Contents

This standard contains the consolidated German version of the European Standard EN 55016-2-2:2011 and is identical to the International Standard CISPR 16-2-2:2010. It specifies requirements for the measurement procedure for the radio-frequency disturbances power in the frequency range 30 MHz to 1 000 MHz. The measurement is performed with the absorbing clamp. In relation to the previous edition specifications for conducted disturbance measurements with FFT based measuring instruments were added. Furthermore definitions of the terms "measurement" and "test" were introduced and hereto reference was made to the International Electrotechnical Vocabulary (IEV) and the International Vocabulary of Metrology (VIM), also the definition "weighting" was replaced by a multipart definition. Moreover the rms-average detector was added in the list of the detector functions in 4.3.
