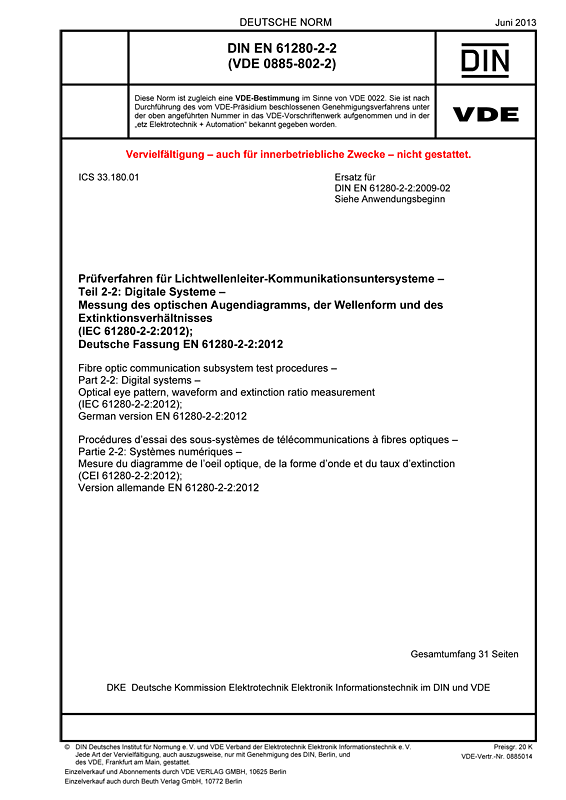

Cover DIN EN 61280-2-2 VDE 0885-802-2:2013-06
larger

DIN EN 61280-2-2 VDE 0885-802-2:2013-06

* German Language Version *

Fibre optic communication subsystem test procedures

Part 2-2: Digital systems – Optical eye pattern, waveform and extinction ratio measurement

(IEC 61280-2-2:2012); German version EN 61280-2-2:2012
Class/Status: Standard, valid
Released: 2013-06
VDE Art. No.: 0885014

Contents

The purpose of this part of IEC 61280 is to describe a test procedure to verify compliance with a predetermined waveform mask and to measure the eye pattern and waveform parameters such as rise time, fall time, modulation amplitude and extinction ratio.
