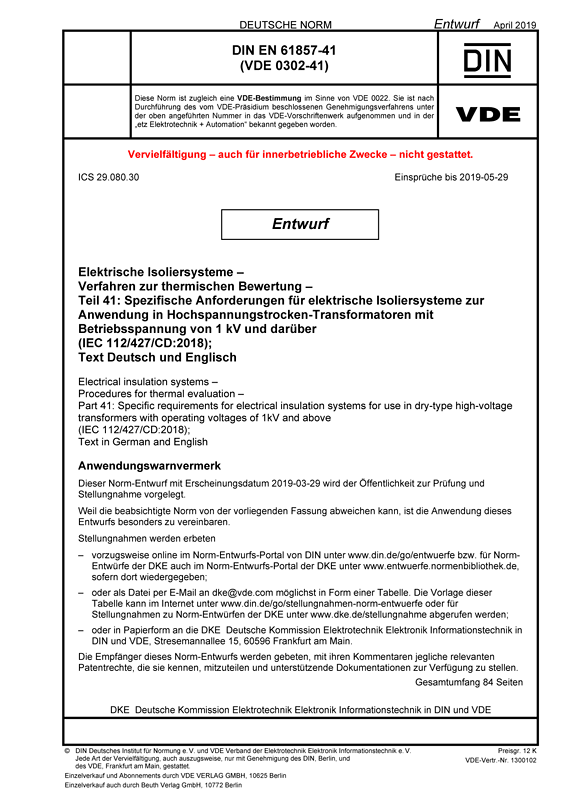

E DIN EN 61857-41 VDE 0302-41:2019-04

Electrical insulation systems – Procedures for thermal evaluation

Part 41: Specific requirements for electrical insulation systems for use in dry-type high-voltage transformers with operating voltages of 1kV and above

(IEC 112/427/CD:2018); Text in German and English
Class/Status: Draft, valid
Released: 2019 -04 Published: 2019-03 -29
VDE Art. No.: 1300102
End of objection deadline: 2019-05-29

This document describes the test procedure for the thermal evaluation of an electrical insulation system (EIS) for use in dry-type, cast-coil and resin encapsulated transformers operating at voltages of 1 kV and above.
