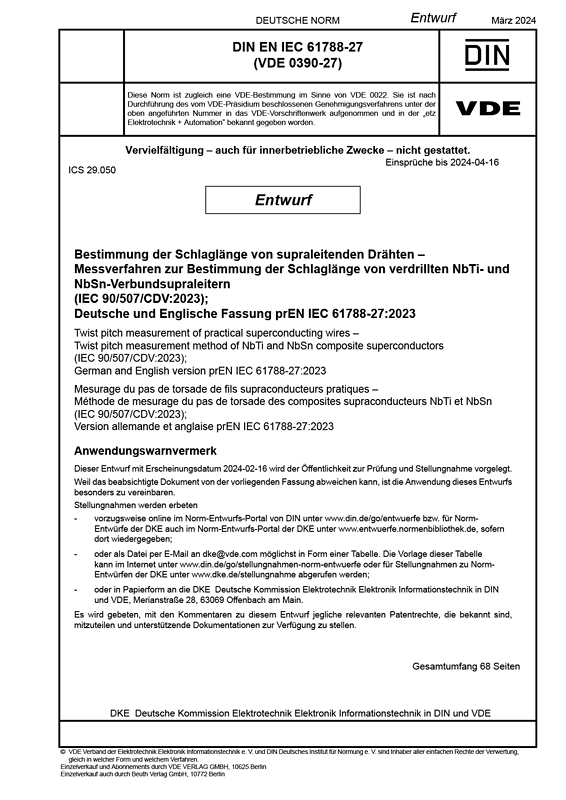

Cover E DIN EN IEC 61788-27 VDE 0390-27:2024-03
larger

E DIN EN IEC 61788-27 VDE 0390-27:2024-03

Twist pitch measurement of practical superconducting wires

Twist pitch measurement method of NbTi and NbSn composite superconductors

(IEC 90/507/CDV:2023); German and English version prEN IEC 61788-27:2023
Class/Status: Draft, valid
Released: 2024 -03   Published: 2024-02 -16
VDE Art. No.: 1300146
End of objection deadline: 2024-04-16

In order to reduce coupling loss and proximity effect coupling loss induced by alternating magnetic field or current, multi-filament composite superconducting wires should be twisted. Therefore, twist pitch is a very important parameter in the design and application of composite superconducting wires, which often needs to be inspected in the last stage of fabrication. This standard specifies the untwisting method for measuring the twist pitch of Nb-Ti and Nb-Sn composite superconductors. As supplementary methods, the direct measurement method and the image processing method are specified also.
