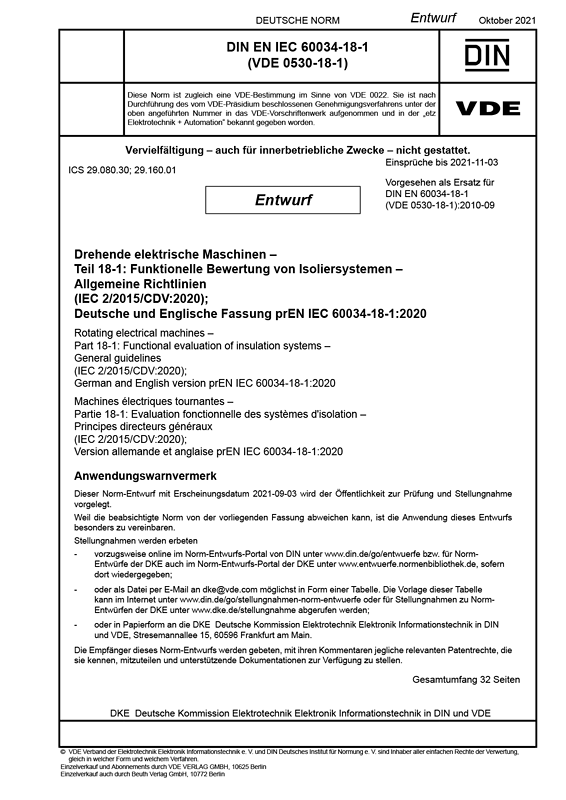

E DIN EN IEC 60034-18-1 VDE 0530-18-1:2021-10

Rotating electrical machines

Part 18-1: Functional evaluation of insulation systems – General guidelines

(IEC 2/2015/CDV:2020); German and English version prEN IEC 60034-18-1:2020
Class/Status: Draft, valid
Released: 2021 -10 Published: 2021-09 -03
VDE Art. No.: 1500198
End of objection deadline: 2021-11-03

IEC 60034-18 comprises several parts, dealing with different types of functional evaluation and special kinds of test procedures for insulation systems of rotating electrical machines. IEC 60034-18-1 provides general guidelines for such procedures and qualification principles, whereas the subsequent parts IEC 60034-18-21, IEC 60034-18-22, IEC 60034-18-31, IEC 60034-18-32, IEC 60034-18-33, IEC 60034-18-34, IEC 60034-18-41 and IEC 60034-18-42 give detailed procedures for the various types of windings. Beyond that, part IEC 60034-18-41 and IEC 60034-18-42 contain special test procedures for electrical evaluation of windings electrically stressed by converter-supply. This part of IEC 60034 deals with the general guidelines for functional evaluation of electrical insulation systems, used or proposed to be used in rotating electrical machines within the scope of IEC 60034-1, in order to qualify them.
