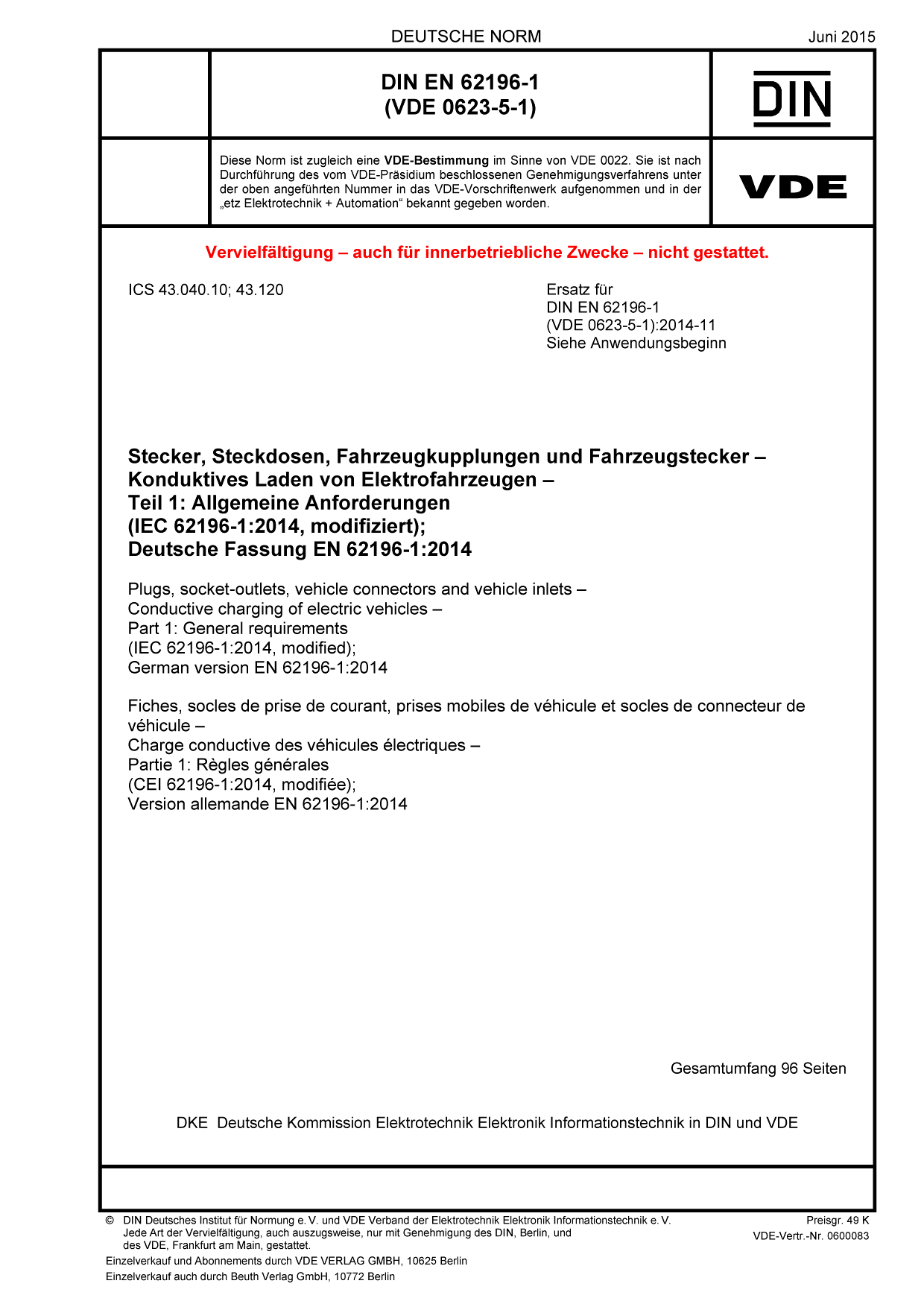

DIN EN 62196-1 VDE 0623-5-1:2015-06

* German Language Version *

Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive charging of electric vehicles

Part 1: General requirements

(IEC 62196-1:2014, modified); German version EN 62196-1:2014
Class/Status: Standard, valid
Released: 2015-06
VDE Art. No.: 0600083

Contents

This part of IEC 62196 is applicable to plugs, socket-outlets, vehicle connectors, vehicle inlets and cable assemblies for electric vehicles, herein referred to as “accessories”, intended for use in conductive charging systems which incorporate control means, with a rated operating
voltage not exceeding
– 690 V a.c. 50 Hz to 60 Hz, at a rated current not exceeding 250 A,
– 1 500 V d.c. at a rated current not exceeding 400 A.

Replacement for:
DIN EN 62196-1 VDE 0623-5-1:2014-11

This Document is related to the following Topics (in bold):

43	ROAD VEHICLES ENGINEERING
43.040	Road vehicle systems
43.060	Internal combustion engines for road vehicles
43.100	Passenger cars. Caravans and light trailers
43.120	Electric road vehicles
