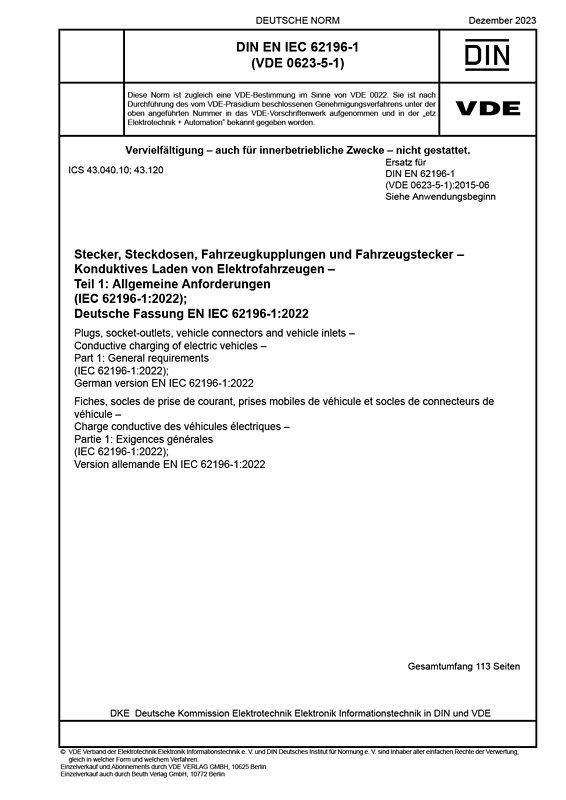

DIN EN IEC 62196-1 VDE 0623-5-1:2023-12

Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive charging of electric vehicles

Part 1: General requirements

(IEC 62196-1:2022); German version EN IEC 62196-1:2022
Class/Status: Standard, valid
Released: 2023-12
VDE Art. No.: 0600462

This part of IEC 62196 is applicable to EV plugs, EV socket-outlets, vehicle connectors, vehicle inlets, herein referred to as "accessories", and to cable assemblies for electric vehicles (EV) intended for use in conductive charging systems which incorporate control means, with a rated operating voltage not exceeding:
– 690 V AC 50 Hz to 60 Hz, at a rated current not exceeding 250 A;
– 1 500 V DC at a rated current not exceeding 800 A.

Replacement for:
DIN EN 62196-1 VDE 0623-5-1:2015-06
