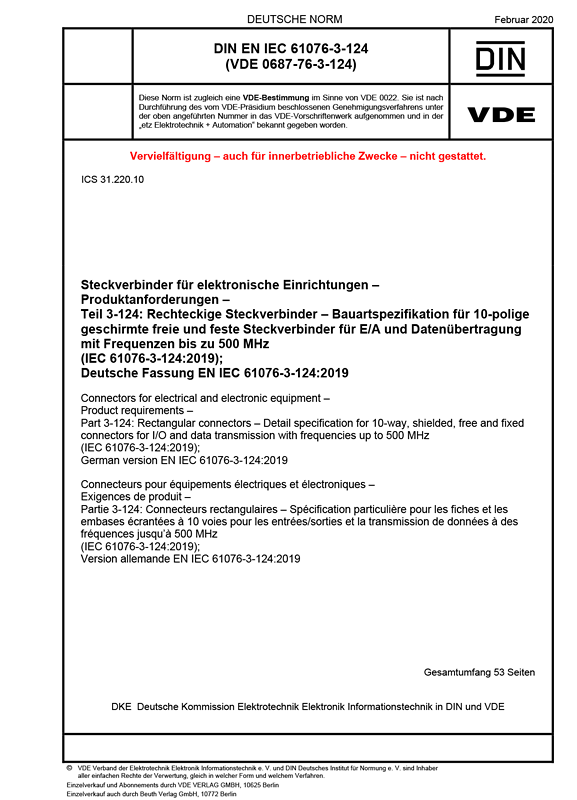

DIN EN IEC 61076-3-124 VDE 0687-76-3-124:2020-02

Connectors for electrical and electronic equipment – Product requirements

Part 3-124: Rectangular connectors – Detail specification for 10-way, shielded, free and fixed connectors for I/O and data transmission with frequencies up to 500 MHz

(IEC 61076-3-124:2019); German version EN IEC 61076-3-124:2019
Class/Status: Standard, valid
Released: 2020-02
VDE Art. No.: 0600256

This part of IEC 61076 covers 10-way shielded free and fixed rectangular connectors for data transmission with frequencies up to 500 MHz and specifies the common dimensions, mechanical, electrical and transmission characteristics and environmental requirements as well as test specifications respectively.
