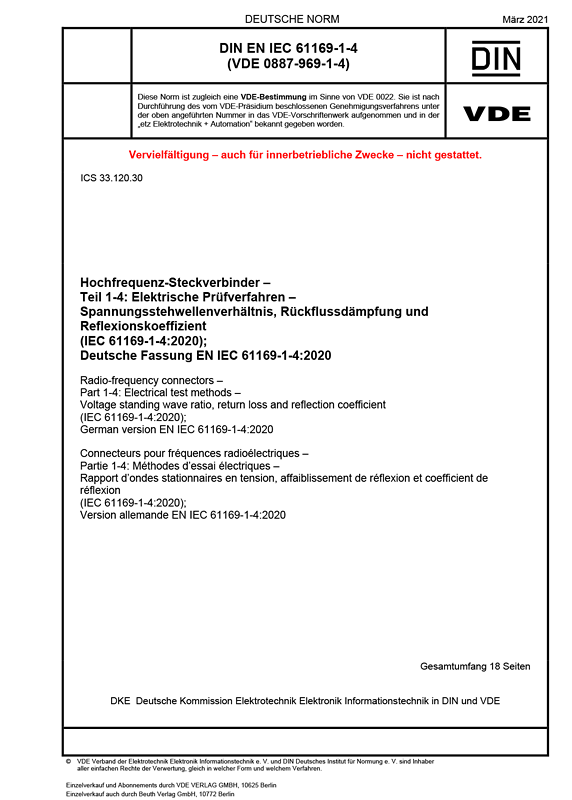

DIN EN IEC 61169-1-4 VDE 0887-969-1-4:2021-03

Radio-frequency connectors

Part 1-4: Electrical test methods – Voltage standing wave ratio, return loss and reflection coefficient

(IEC 61169-1-4:2020); German version EN IEC 61169-1-4:2020
Class/Status: Standard, valid
Released: 2021-03
VDE Art. No.: 0800710

This part of IEC 61169 provides test methods for the voltage standing wave ratio, return loss and reflection coefficient of the RF connector, including frequency domain method, time domain method, and the gating time domain method.

This Document is related to the following Topics (in bold):

33	TELECOMMUNICATIONS. AUDIO AND VIDEO ENGINEERING
33.020	Telecommunications in general
33.040	Telecommunication systems
33.050	Telecommunication terminal equipment
33.060	Radiocommunications
33.070	Mobile services
33.100	Electromagnetic compatibility (EMC)
33.120	Components and accessories for telecommunications equipment
33.140	Special measuring equipment for use in telecommunications
33.160	Audio, video and audiovisual engineering
33.170	Television and radio broadcasting
33.180	Fibre optic communications
33.200	Telecontrol. Telemetering
