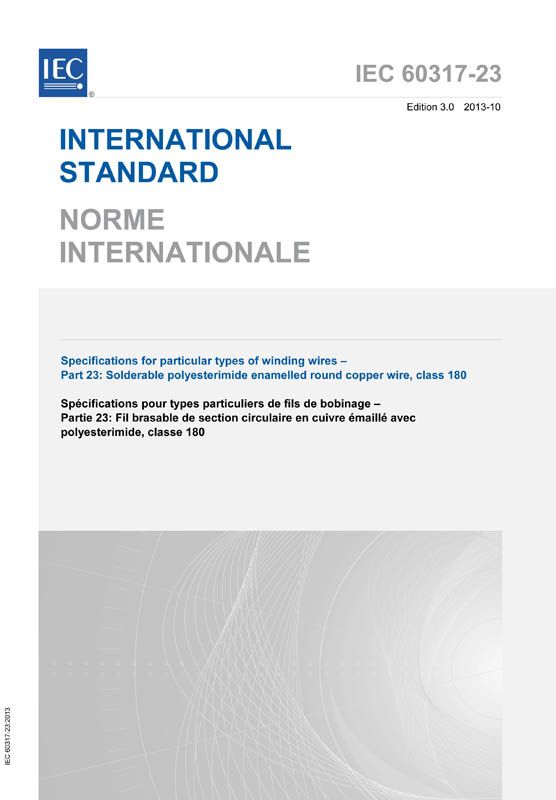

IEC 60317-23:2013

Specifications for particular types of winding wires - Part 23: Solderable polyesterimide enamelled round copper wire, class 180

Ausgabedatum: 2013-10
Edition: 3.0
Sprache: EN-FR - zweisprachig englisch/französisch
Seitenzahl: 20 VDE-Artnr.: 220301

Inhaltsverzeichnis

IEC 60317-23:2013 specifies the requirements of solderable enamelled round copper winding wire of class 180 with a sole coating based on polyesterimide resin, which may be modified providing it retains the chemical identity of the original resin and meets all specified wire requirements. NOTE - A modified resin is a resin that has undergone a chemical change, or contains one or more additives to enhance certain performance or application characteristics. The range of nominal conductor diameters covered by this standard is:
- Grade 1: 0,020 mm up to and including 1,600 mm;
- Grade 2: 0,020 mm up to and including 1,600 mm. The nominal conductor diameters are specified in Clause 4 of IEC 60317-0-1:2013. This third edition cancels and replaces the second edition published in 1990, Amendment 1:1997 and Amendment 2:1999. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- new 3.2.2 containing general notes on winding wire, formerly a part of the scope;
- revision to references to IEC 60317-0-1:2013 to clarify that their application is normative;
- consolidation of 17.1 and 17.2 of the solderability requirements;
- modification to Clause 19, Dielectric dissipation factor;
- new Clause 23, Pin hole test. Keywords: requirements of solderable enamelled round copper winding wire, class 180, sole coating based on polyesterimide resin
