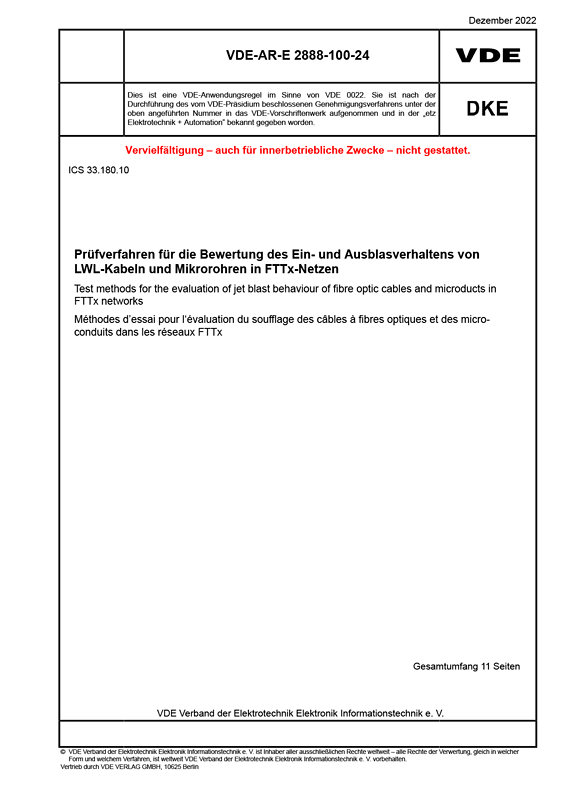

Cover VDE-AR-E 2888-100-24 Anwendungsregel:2022-12
größer

VDE-AR-E 2888-100-24 Anwendungsregel:2022-12

Prüfverfahren für die Bewertung des Ein- und Ausblasverhaltens von LWL-Kabeln und Mikrorohren in FTTx-Netzen

Art/Status: Anwendungsregel, gültig
Ausgabedatum: 2022 -12
VDE-Artnr.: 0800805

Der Zweck dieser Prüfung ist der Nachweis der Einblasmöglichkeit eines LWL-Mikro- bzw. LWL-Minikabels, im Folgenden kurz Mikrokabel genannt, in ein Mikrorohr. Das Mikrorohr kann auch Teil eines Mikrorohrverbandes sein. Die Prüfung gilt auch für ein LWL-Standardkabel, im Nachfolgenden kurz LWL-Kabel genannt, in ein Kabelschutzrohr.
Das Dokument beschreibt den Prüfaufbau inklusive der Teststrecke, die Durchführung der Prüfung und die Anforderungen an das Bestehen der Prüfung, die festzulegenden und die im Prüfbericht festzuhaltenden Einzelheiten.
Es gibt keine Einschränkungen im Anwendungsbereich des Dokuments.
Das Dokument erhöht durch ihre Anwendung die Investitionssicherheit für Hersteller und Anwender und gibt Prüflaboren und Herstellern definierte Angaben zur Prüfung und sichert Kompatibilität über Herstellergrenzen hinweg.
Ankündigungstext englísch:
This document contains a test procedure for evaluating the behavior of a micro cable or fibre optic cable when it is blown into a micro tube or cable protection tube. The test conditions are adapted to the conditions during practical installation in the field of FTTx networks. FTTx networks involve many bends and few long, straight sections. This test also checks the blow-out capability of the cable.
The document describes the test setup including the test track, how the test is performed and the requirements for passing the test, the details to be specified and those to be recorded in the test report.
There are no restrictions in the scope of the document.
Through its application, the standard increases investment security for manufacturers and users and provides testing laboratories and manufacturers with defined specifications for testing and ensures compatibility across manufacturer boundaries.
